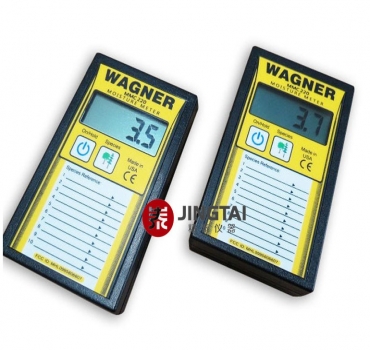

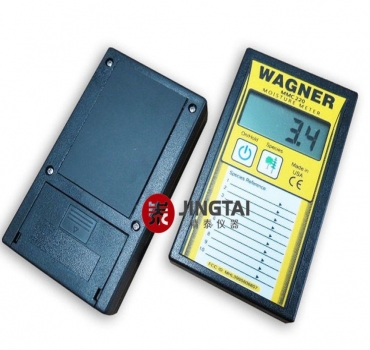

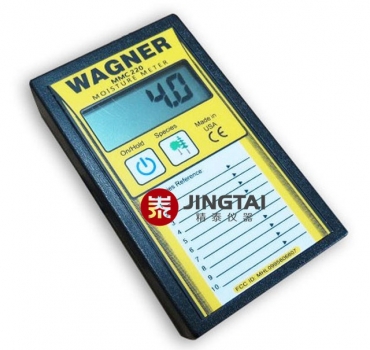

美国MMC220瓦格纳木材水分仪_进口木材水分仪特点:
1、高频电磁波感应式,无损检测,不会破坏木材表面。
2、仪表开机后60秒自动关机,.节约电能,保护仪器更长时间的使用。
3、操作简单,只需设定木材密度后置于材料表面,按下ON开关键即可测量出木材含水率。
4、木材成品半成品皆可,如傢俱,地板、木方、竹板等等。
美国MMC220瓦格纳木材水分仪_进口木材水分仪参数:
测定方式:高频电磁波感应式
测量范围:5~30%(含水率)
分 辨 率:0.1%
显 示:LCD液晶数字显示
扫描深度:20~40(mm)
电 源:1节9V电池
测定更加小需感应之面积 40 x 60 mm.
外形尺寸:115×68×25(mm)
售后服务:保修一年,终身维护。
About this Moisture Meter
Our most popular selling model for wood flooring and woodworking applications. The MMC220 moisture meter is ideal for measuring wood moisture in all wood species; from rare tropical species to the more common softwoods and hardwoods. User-programmable species settings.
Materials to Measure
Softwoods and hardwoods as well as tropical species
Other Building Products – relative reading on materials with similar densities to wood
Specific Applications
For flooring installers or manufacturers, cabinet or furniture manufacturers, inspectors or lumber suppliers, the MMC220 offers a complete and portable moisture meter easy to use and easy to adjust. With its Extended Range Specific Gravity (SG) to measure common softwoods and hardwoods as well as tropical species, the MMC220 can quickly and accurately scan many board feet of incoming lumber or many pieces of wood flooring in just seconds.
Wagner Meters' IntelliSense™ Technology ensures that the MMC220 is measuring deeply IN the wood for a true moisture picture without damage to the wood surface and without interference from surface moisture. Two-button controls make one-handed operation simple. And like all of the meters at Wagner Meters, there is no need to adjust moisture content (MC) readings for temperature.
The MMC220, with its Press and Hold feature, lets you get into tight places without needing a visual line to the meter display. Beneath a sink, under a cabinet overhang or in a tight corner, with the Press and Hold Feature you can take the MC reading and the display holds the reading once the meter is removed, letting you quickly and easily document MC readings in all parts of your project.
Lightweight, easy to operate, and with an extended SG capability, the quick and accurate MMC220 is the best all-purpose moisture meter on the job.
Meter Specifications
Size & Weight |
Length – 4 9/16"; Width – 2 3/4"; Height – 1 1/16"; Weight – .37 lbs |
Power |
Power – 9 volt battery |
Control |
Two button control for on/off and species settings |
Depth of Measurement |
3/4" |
Moisture Content |
5% - 30% |
Scanning Area |
1 1/2" x 2 1/2" |
Specific Gravity |
Selectable wood species setting .20-1.0 |
Calibration |
Verifiable with Calibration Block (sold separately) |
Other |
1 Year Warranty |
